XML Mapping

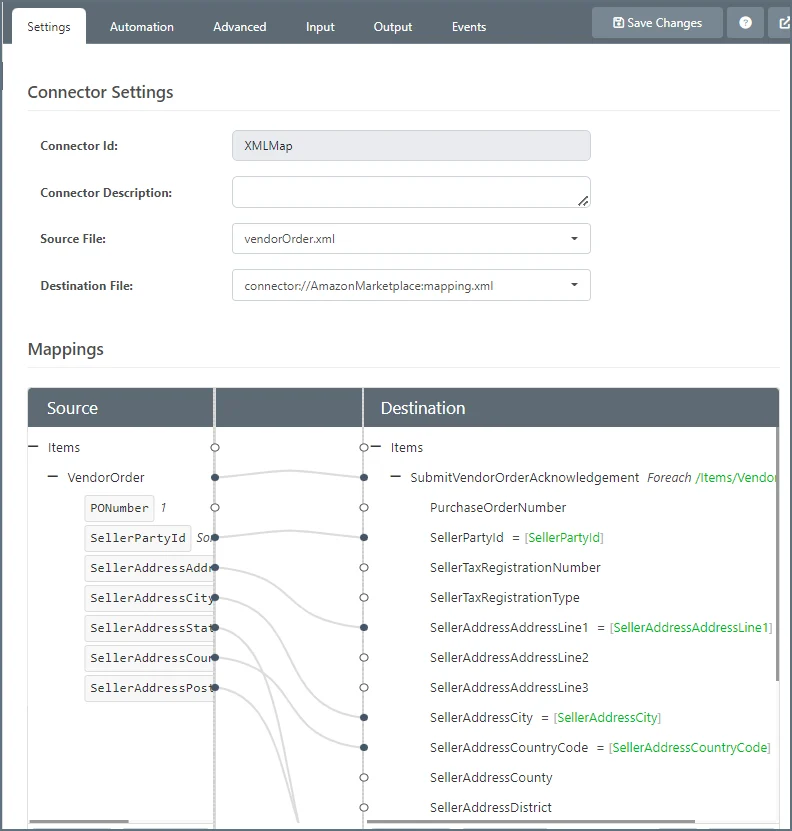

You must connect an XML Map connector to the Amazon Marketplace connector to map the required input parameters, as shown in the image below.
Input Parameters
The following table lists the input parameters that you can map with the XML Map connector interface.| Name | Data Type | Required? | Description |
|---|---|---|---|
| PurchaseOrderNumber | String | True | The purchase-order number. |
| SellerPartyId | String | True | The assigned identification for the party (for example, a warehouse code or vendor code). |
| SellerTaxRegistrationNumber | String | False | The tax registration number for the entity (for example, the VAT ID). |
| SellerTaxRegistrationType | String | False | The tax registration type for the entity. The allowed values are VAT (the value-added tax) and GST.x (the goods-and-services tax) only. |
| SellerAddressAddressLine1 | String | False | The first line of the address. |
| SellerAddressAddressLine2 | String | False | Additional address information (if required). |
| SellerAddressAddressLine3 | String | False | Additional address information (if required). |
| SellerAddressCity | String | False | The city where the person, business, or institution is located. |
| SellerAddressCountryCode | String | False | The two-digit country code in ISO 3166-1 alpha-2 format. |
| SellerAddressCounty | String | False | The county where the person, business, or institution is located. |
| SellerAddressDistrict | String | False | The district where the person, business, or institution is located. |
| SellerAddressName | String | False | The name of the address for the person, business, or institution. |
| SellerAddressPhone | String | False | The phone number for the person, business, or institution that is located at that address. |
| SellerAddressPostalCode | String | False | The postal code for the address. This code consists of a series of letters, digits, or both. |
| SellerAddressStateOrRegion | String | False | The state or region where the person, business, or institution is located. |
| AcknowledgementDate | Datetime | False | The date and time when the purchase order is acknowledged, in ISO 8601 date/time format. |
| OrderAcknowledegment/ ItemSequenceNumber | String | False | The line-item sequence number for the item. |
| OrderAcknowledegment/ AmazonProductIdentifier | String | False | The Amazon Standard Identification Number (ASIN) of an item. |
| OrderAcknowledegment/ VendorProductIdentifier | String | False | The vendor-selected product identification of the item. |
| OrderAcknowledegment/ OrderedAmount | Integer | True | The ordered quantity. This value should not be zero. |
| OrderAcknowledegment/ OrderedUnit | String | True | The unit of measure for the ordered quantity. |
| OrderAcknowledegment/ OrderedUnitSize | Integer | True | A case size (if product is ordered by the case). |
| OrderAcknowledegment/ NetCostCurrencyCode | String | False | The three-digit currency code in ISO 4217 format. |
| OrderAcknowledegment/ NetCostAmount | String | False | The net cost as a decimal number with no loss of precision. |
| OrderAcknowledegment/ ListPriceCurrencyCode | String | False | Three-digit currency code in ISO 4217 format. |
| OrderAcknowledegment/ ListPriceAmount | String | False | The list price as a decimal number with no loss of precision. |
| OrderAcknowledegment/ DiscountMultiplier | String | False | A discount multiplier that should be applied to the price if a vendor sells books with a list price. |
| OrderItemAcknowledgement/ AcknowledgementCode | String | True | An indicator of the acknowledgement code. |
| OrderItemAcknowledgement/ AcknowledgedAmount | Integer | True | The ordered quantity. This value should not be zero. |
| OrderItemAcknowledgement/ AcknowledgedUnit | String | True | The unit of measure for the ordered quantity. |
| OrderItemAcknowledgement/ AcknowledgedUnitSize | Integer | False | The case size (if the product is ordered by the case). |
| OrderItemAcknowledgement/ ScheduledShipDate | Datetime | False | The estimated ship date per line item. The date must be in ISO 8601 date/time format. |
| OrderItemAcknowledgement/ ScheduledDeliveryDate | Datetime | False | The estimated delivery date per line item. The date must be in ISO 8601 date-and-time format. |
| OrderItemAcknowledgement/ RejectionReason | String | False | The unit of measure for the ordered quantity. |
