Python Connector

The Python connector provides the ability to perform functions or operations that are not otherwise available in the built-in connectors of .

Key Capabilities

Custom business logic implementation using Python scripting
Access to full message context including message headers and file content
Integration with external libraries and system commands (Python)
Support for complex data transformations and business rule processing

Overview

Python connectors use the Python scripting language to accomplish a wide range of custom behavior. The script configured in the connector is run each time a document is placed in the Transactions tab for the connector. The input document can be read and modified in the script, or the input document can simply trigger the Python script configured in the connector. Python connectors can also be configured to run on a schedule via Receive automation on the Automation tab. After you decide the appropriate task for your Python connector, read the Writing Python documentation to explore how to call various operations.

Connector Configuration

This section contains all of the configurable connector properties.

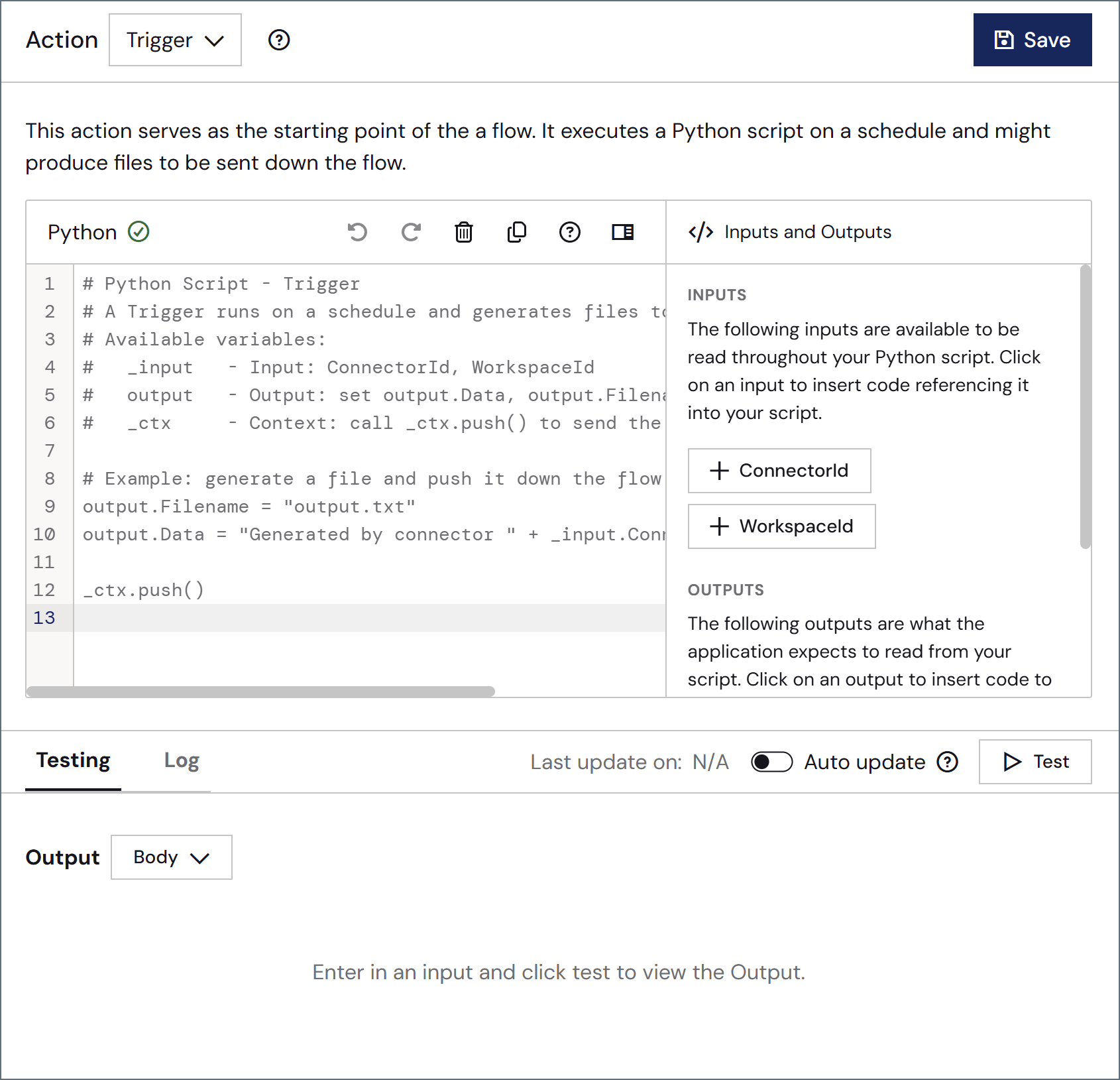

Python Tab

Options related to writing and testing the script.

Setting	Description
Action dropdown	Choose the connector’s action. (See Actions for details on the three options.)
Python editor	Use the editor to write your script. The toolbar contains standard editing options such as undo, redo, delete, copy, and format. It also includes an option to hide the Insert Options in the right pane.
Insert Options	The panel in the right pane makes it easy to insert code into your script with one click. The dropdown includes Inputs and Outputs (such as ConnectorId or Encoding—the available options depend on the configured Action), Snippets, Keywords, Operators and Formatters. Find the code you want to insert, and click to add it.
Testing tab	Specify whether to view the script input and/or output as the message body or headers. Options on this tab vary based on the script’s action type (for example, trigger scripts do not have inputs). Click Test to test the script.
Log tab	Displays the test log.
Last update on	Displays the datetime the script was last modified and saved.
Auto update	Use the toggle to automatically test the script after each modification.

Actions

Settings Tab

Configuration

Settings related to the core operation of the connector.

Advanced Settings

Setting	Description
Local File Scheme	A scheme for assigning filenames to messages that are output by the connector. You can use macros in your filenames dynamically to include information such as identifiers and timestamps. For more information, see Macros.

Advanced Tab

Message

Logging

Other Settings

Setting	Description
Processing Delay	The amount of time (in seconds) by which the processing of files placed in the Transactions tab is delayed. This is a legacy setting. Best practice is to use a File connector to manage local file systems instead of this setting.

Miscellaneous

Automation Tab

Automation Settings

Settings related to the automatic processing of files by the connector.

Setting	Description
Send	Whether messages arriving at the connector are automatically processed.
Retry Interval	The number of minutes that the connector waits before retrying a failed script execution.
Max Attempts	The number of times that the connector retries a failed script execution before raising an error.
Receive	Whether the connector should automatically run the script on a configured schedule.
Receive Execution Interval	The unit of measure to use for the receive automation schedule (such as Minutes, Hours, or Days).
Minutes Past the Hour	The minutes offset for an hourly schedule. Only applicable when the interval setting above is set to Hourly.
Time	The time of day that the attempt should occur. Only applicable when the interval setting above is set to Daily, Weekly, or Monthly.
Day	The day on which the attempt should occur. Only applicable when the interval setting above is set to Weekly or Monthly.
Minutes	The number of minutes to wait before attempting the download. Only applicable when the interval setting above is set to Minute.
Cron Expression	A five-position string representing a cron expression that determines when the attempt should occur. Only applicable when the interval setting above is set to Advanced.

Performance

Alerts Tab

SLAs Tab

Transactions Tab

This tab lists all messages associated with the connector. Use the search bar to find specific messages, or click the funnel icon to apply a filter. You can filter by time, message direction, and/or status. Options on this tab vary depending on the connector’s action type:

If your connector is a Trigger, use the Receive button to start the flow.
If your connector is a Transform or Terminal, messages that come from a previous connector in the flow automatically appear in the flow, or you can use the Upload Files button to add files.

Producing Output and Log Entries

Python connectors send data to the output feed through the built-in output item, which is pushed automatically when the script finishes — no explicit push is needed. (To push a custom item instead, set its attributes and call _ctx.push(item).) Following are three common use cases. 1 Create and output a file:

output.Filename = "results.txt"
output.Data = "This is my result"

2 Pass an input file as output:

output.Filepath = _input.Filepath

3 Write entries to the connector log file:

print("Custom Log entry line 1")
print("Custom Log entry line 2")

In a Python connector, print() writes to the log file for the current message (as shown above). To write to the application log instead, use _ctx.log('level', 'message') with a level of DEBUG, INFO, WARNING, or ERROR.
