Form connectors expose a public web endpoint where clients fill out a form and submit that data into a CData Arc flow.

​
Key Capabilities

  • Web-based form creation with drag-and-drop designer
  • Support for sections, detail tables, and multiple field types
  • User authentication and access control for form submissions
  • Dynamic form generation with customizable branding and success messages

​
Overview

Forms are created on the connector Form Designer tab. A form is divided into sections and detail tables, each of which can have a variable number of fields. For details, see Creating Forms. When you use a Form connector to submit new data, you should place the connector at the start of a connected flow. Clients can connect to the web endpoint, view and fill out the form, and submit this data into the configured Arc flow. For more information, see Submitting Form Data. The following sections explain how to configure the connector, create forms, and submit new form data.

​
Connector Configuration

This section contains all of the configurable connector properties.

​
Form Designer Tab

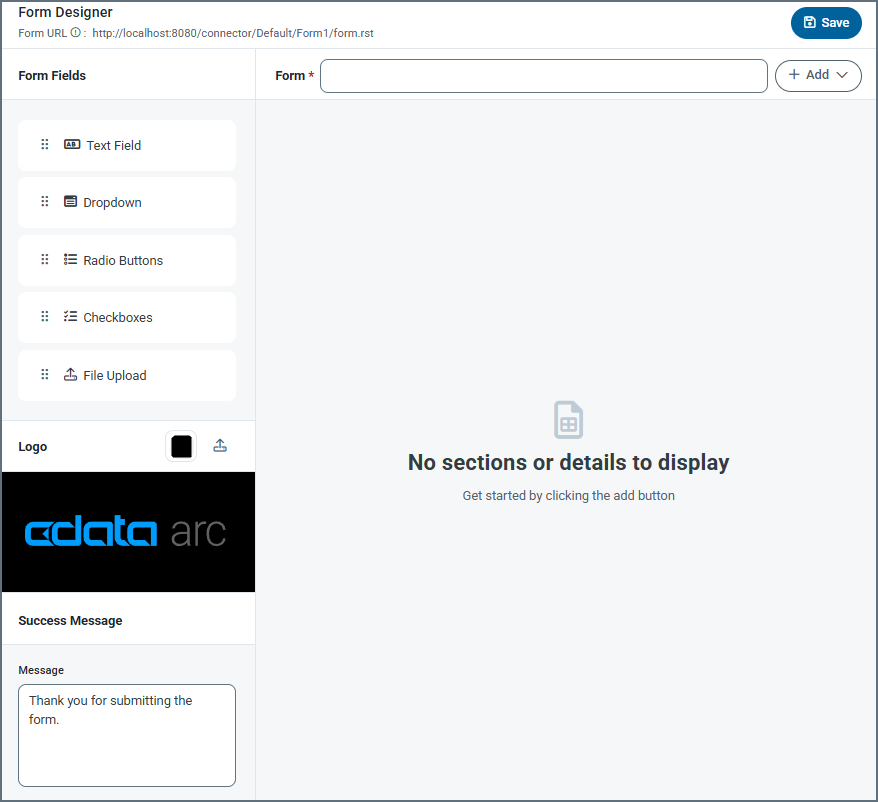

Settings related to building a set of form fields that are organized into sections and detail tables. When clients connect to the configured endpoint and submit a form, they see fields that are laid out exactly as they are configured in the panel above. The designer includes the following settings (see Creating Forms for more details).

​
Settings Tab

​
Connector Settings

Settings related to the core configuration of the connector.
SettingDescription
Connector IdThe static, unique identifier for the connector.
Connector TypeDisplays the connector name and a description of what it does.
Connector DescriptionAn optional field to provide a free-form description of the connector and its role in the flow.

​
Advanced Settings

​
Form Users Tab

The Form Users tab lets you create user credentials for clients so that they can access the public endpoint. If a client is not logged into the application administration console already, that client is prompted to enter the User and Password combination when they browse to the endpoint. You can add, edit, and delete credentials on this tab.

​
Adding Users

To add user credentials:
  1. Click Add User to open the Add Form User dialog box.
  2. Enter a username and password. (Click the eye icon to see the contents of the password field.)
  3. Click Save Changes and the new user is added to the list of form users.

​
Editing Users

To edit users:
  1. Click the ellipses next to the user that you want to edit, then click Edit.
  2. Edit the credentials and click Save. If you decide not to make changes, click Cancel.

​
Deleting Individual Users

To delete individual users:
  1. Click the ellipses next to the user that you want to edit, then click Remove.
  2. Click Remove to delete the user or Cancel to cancel the deletion request.

​
Deleting Multiple Users

To remove multiple users, select the checkboxes for the users you want to delete, then click Remove. Confirm the deletion, or cancel the request.

​
Server Tab

​
Trusted IP Addresses

​
Advanced Tab

​
Logging

Settings that govern the creation and storage of logs.

SettingDescription
Log LevelThe verbosity of logs generated by the connector. When you request support, set this to Debug.
Log Subfolder SchemeInstructs the connector to group files in the Logs folder according to the selected interval. The Weekly option (which is the default) instructs the connector to create a new subfolder each week and store all logs for the week in that folder. Leaving this setting blank tells the connector to save all logs directly in the Logs folder. For connectors that process many transactions, using subfolders helps keep logs organized and improves performance.
Log MessagesCheck this to have the log entry for a processed file include a copy of the file itself. If you disable this, you might not be able to download a copy of the file from the Transactions tab.

​
Miscellaneous

Miscellaneous settings are for specific use cases.

SettingDescription
Other SettingsEnables you to configure hidden connector settings in a semicolon-separated list (for example, setting1=value1;setting2=value2). Normal connector use cases and functionality should not require the use of these settings.

​
Alerts Tab

​
SLAs Tab

​
Transactions Tab

This tab lists all messages associated with the connector. Use the search bar to find specific messages, or click the funnel icon to apply a filter. You can filter by time, message direction, and/or status. Incoming form responses appear on this tab.

​
Configuring the IIS Server

If your Arc instance is hosted on an IIS server and you use Microsoft Windows authentication to login to the application, you must disable Windows authentication for your users. Otherwise, the Form connector cannot properly authenticate users, and the connector will not work properly. To disable Windows authentication:
  1. In your IIS manager, create a new folder named connector in the base application path.

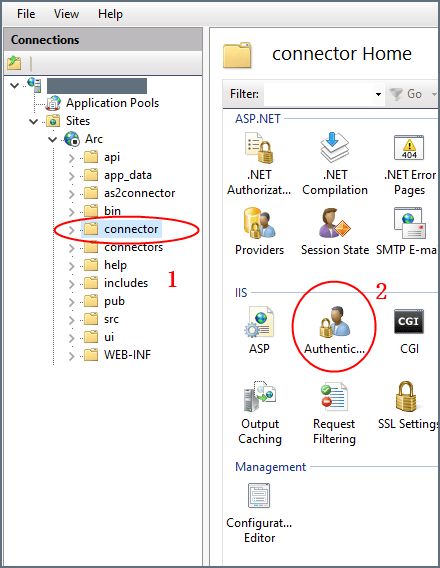

  2. Select Authentication under IIS (in the right pane) for the connector folder.

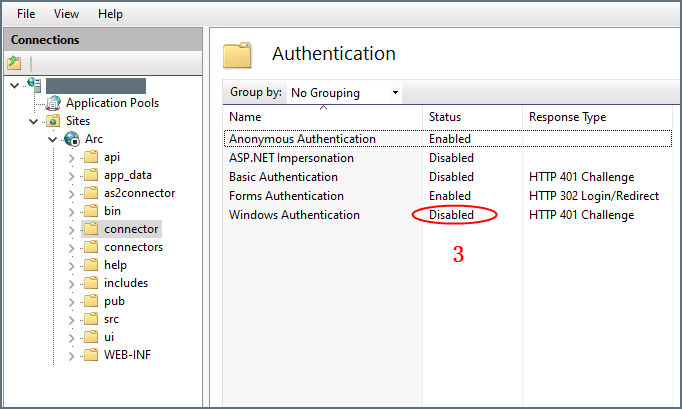

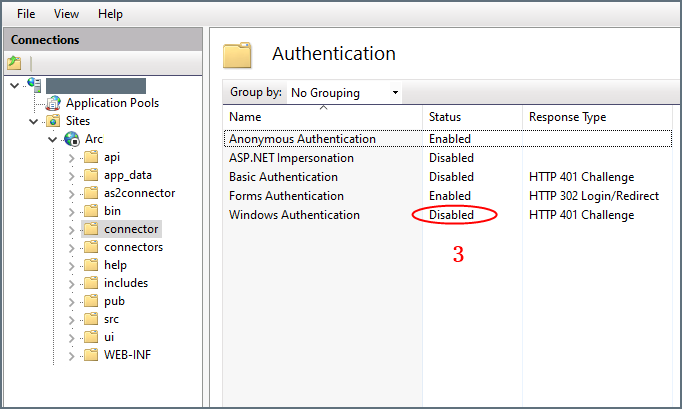

  3. Set Windows Authentication to Disabled for this folder.

​
Creating Forms

Forms have fields, sections, and details:
  • Section: A heading that groups fields together
  • Detail: An object that acts like a pre-configured table where the form user can add as many records as they need for the dataset
  • Field: An input box with a label where users enter form data
To get started, click the Add button next to the form title, and choose whether to Add Section or Add Detail.

​
Adding Sections

Sections divide fields in the form by categorizing them under a heading. For example, the Ship To section might contain fields like Address, City, and Zip. Sections are not required in order to add fields to the form. However, sections provide logical groupings of items that help users quickly understand the form. To add a section:

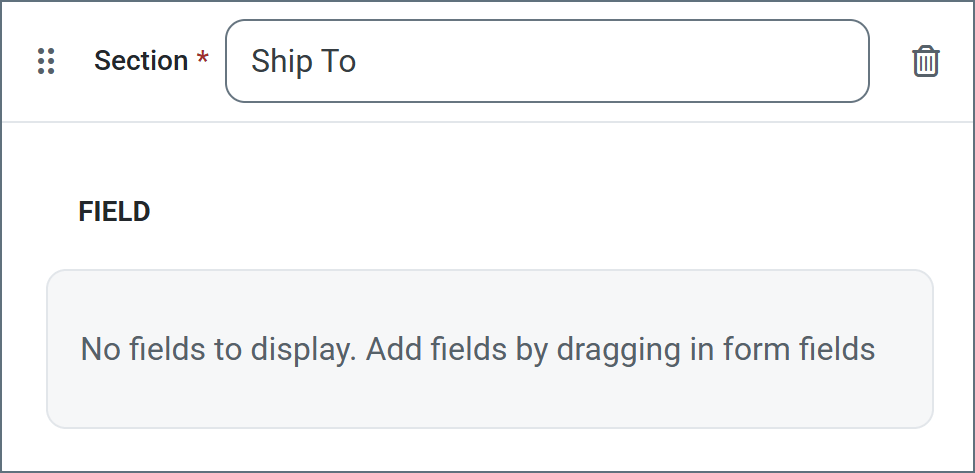

  1. Choose Add Section from the dropdown. Enter a section name.
  2. Now you can start Adding Fields to the section.

​
Adding Detail Tables

Detail tables allow form creators to embed a table in the web form to enable structured, row-based data entry. They include a configurable number of columns which you define during the form creation. They are ideal for capturing repeatable datasets in a single form submission. End users can then dynamically add as many rows as needed and enter values for each column in those rows. See Accessing Your Form for an example. To add a detail table to your form:

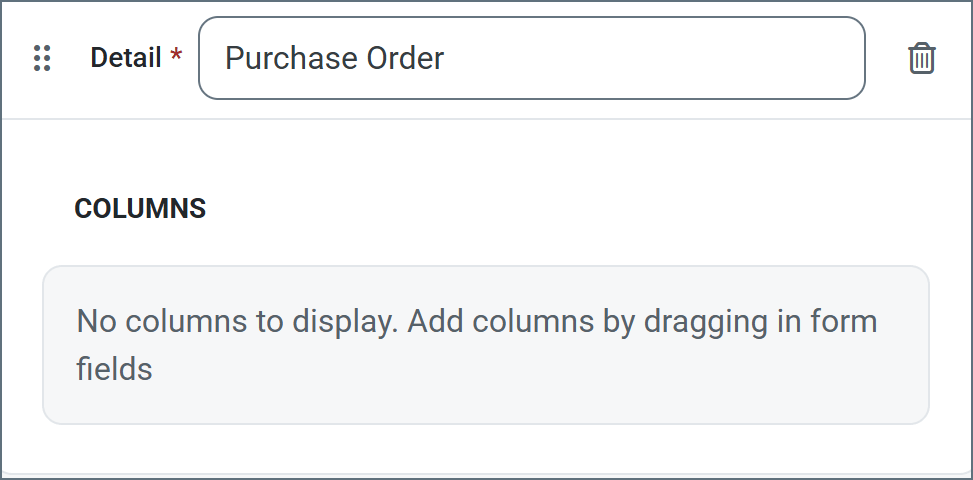

  1. Click Add Detail from the dropdown. Enter a name.
  2. Now you are ready to add columns to the table. Select any of the form field types.

​
Adding Fields

Fields are the basic unit of input for the form. To add a field:
  1. Drag an object from the Form Fields section into your section or detail table.
  2. Enter a Display Name (for example, Line Item Id). By default, XML Name is populated, but you can use the Override checkbox to supply a different name.
  3. Use the Is required checkbox to specify whether the field is mandatory.

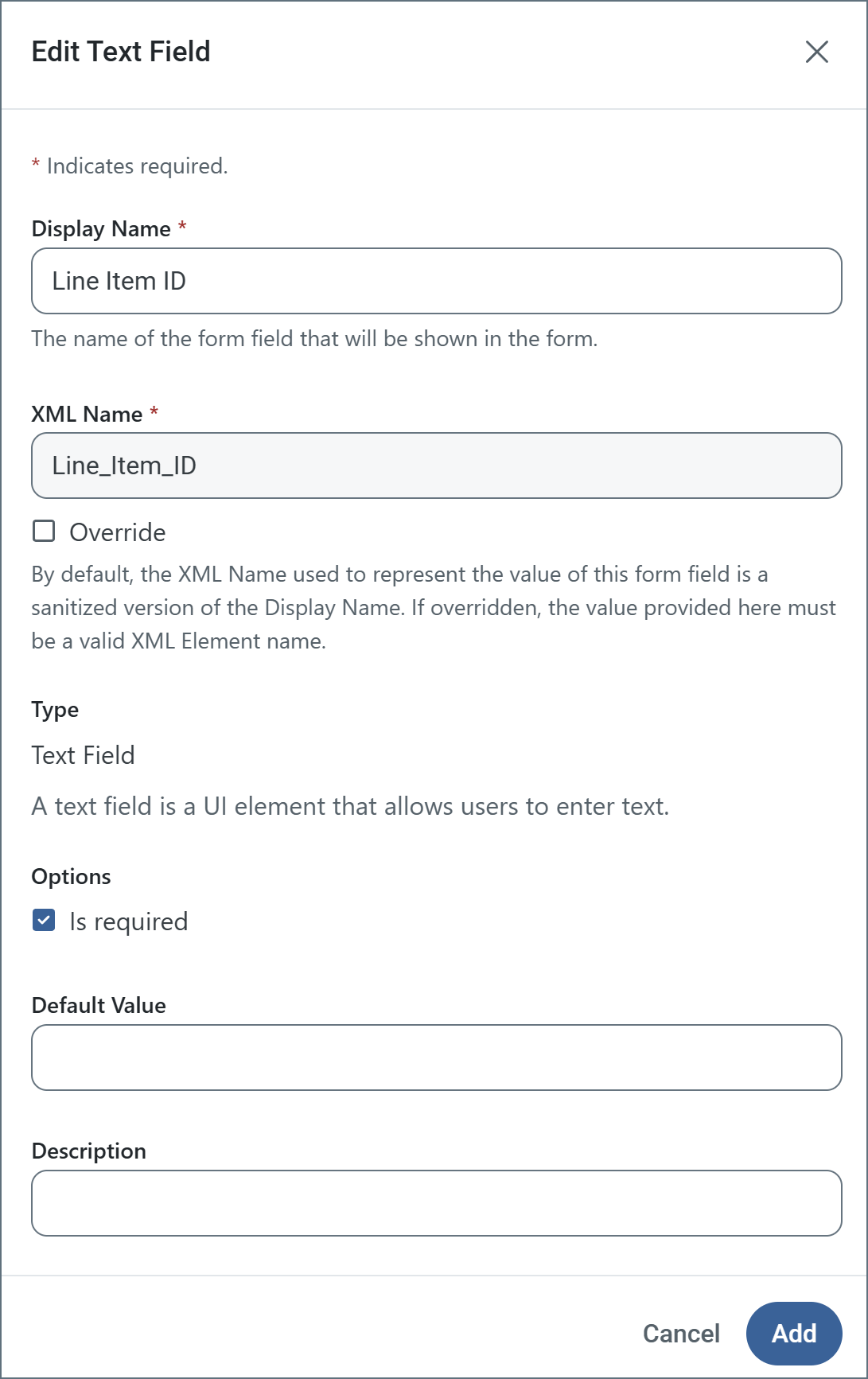

  4. The other options vary based on the form field type. The following example shows a text field being defined. When you are finished defining the field, click Add.

To edit a field, click the link to its name, or the ellipses to the right of the name.

To remove a field, click the ellipses and choose Remove Instance.

Drag and drop fields in a section or detail table to reorder their position in the form.

​
Form Field Types

​
Text Field Options

  • Display Name: Name of the field in the form.
  • XML Name: Sanitized version of the Display Name. It must be a valid XML element name.
  • Override: Checkbox which allows you to change the default XML Name.
  • Is required: Checkbox indicating whether the field is mandatory.
  • Default Value: Populates the form with the text supplied here.
  • Description: Helper text describing what the field is for.
  • Display Name: Name of the field in the form.
  • XML Name: Sanitized version of the Display Name. It must be a valid XML element name.
  • Override: Checkbox which allows you to change the default XML Name.
  • Dropdown Options: The list of options that appear in the form dropdown field. Click Add Option to add the options you need.
  • Is required: Checkbox indicating whether the field is mandatory.
  • Default Value: Populates the form with the text supplied here.
  • Description: Helper text describing what the field is for.

​
Radio Button Field Options

  • Display Name: Name of the field in the form.
  • XML Name: Sanitized version of the Display Name. It must be a valid XML element name.
  • Override: Checkbox which allows you to change the default XML Name.
  • Radio Button Options: The list of options that appear in the form radio button field. Click Add Option to add the options you need.
  • Is required: Checkbox indicating whether the field is mandatory.
  • Default Value: Populates the form with the text supplied here.
  • Description: Helper text describing what the field is for.

​
Checkbox Field Options

  • Display Name: Name of the field in the form.
  • XML Name: Sanitized version of the Display Name. It must be a valid XML element name.
  • Override: Checkbox which allows you to change the default XML Name.
  • Checkbox Options: The list of options that appear in the form checkbox field. Click Add Option to add the options you need.
  • Is required: Checkbox indicating whether the field is mandatory.
  • Default Value: Populates the form with the text supplied here.
  • Description: Helper text describing what the field is for.

​
File Upload Field Options

  • Display Name: Name of the field in the form.
  • XML Name: Sanitized version of the Display Name. It must be a valid XML element name.
  • Override: Checkbox which allows you to change the default XML Name.
  • Accepted File Type Extensions: The allowed list of upload file types. For example, .xml only accepts XML files. To allow all file types, use *. Click Add Option to add the options you need.
  • Is required: Checkbox indicating whether the field is mandatory.
  • Default Value: Populates the form with the text supplied here.
  • Description: Helper text describing what the field is for.

​
Accessing Your Form

When you finish designing your form, access it by clicking the Form URL link at the top of the designer. The following form is a simple example:

​
Submitting Form Data

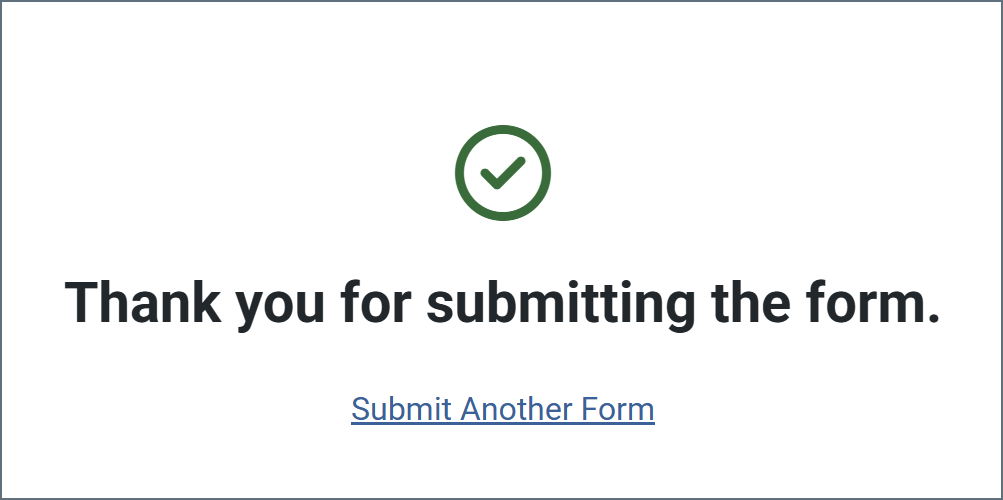

After you create a form, users access the Form connector’s web endpoint and submit data using the form. For fields in the main form, users simply enter the values that correspond to the labels on the form (which are taken from the name of the fields that you created). Users can add rows to the detail table by clicking Add Row. Once a user enters all their data, they click Submit to submit their data. If the submission is successful, a message similar to the following appears. When a user submits a form, the form data is pushed to the Transactions tab. The output is an XML file that contains the following structure:
This output is well suited to being processed by an XML Map Connector so that it can be mapped into an XML format that is usable by another connector.

​
