Flat File Connector - CData Arc Documentation

Flat File connectors convert flat file formats into XML, and vice versa.

Key Capabilities

Bidirectional flat file/XML parsing for position-delimited and character-delimited formats
Support for multiple line types with control field identification
Automatic hierarchy detection and XML nesting for master-detail relationships
Comprehensive field mapping with custom data type handling

Overview

Each Flat File connector is configured with a specific flat file format to convert to XML or to generate from XML. The Flat File connector has two primary modes:

Position Delimited, where the connector is configured with an arbitrary set of field names, indices (such as positions), and lengths indicating where data appears in each line of the flat file.
Character Delimited, where the connector is configured with the character that separates field values in the flat file.

See Defining the Flat File Format for details.

You might also need a numeric control field. Follow the instructions in Non-Standard XML Control Fields to set this up.

The Flat File connector supports defining multiple types of lines in the flat file. For example, a flat file might have a header line representing Purchase Order data, and multiple item lines representing the Line Items in the order. The key to defining multiple line types is to specify the Control Field; this value is what determines the type of a specific line in the flat file data (for example, a header line might have a control field value of HEAD while an item line has a control field value of ITEM). See Multiple Line Types for details on how to configure multiple line types. Once the flat file format is configured, the connector converts files that match this format into XML. The resulting XML structure is explained in XML Format. The Flat File connector can also translate XML that fits this structure into a flat file according to the defined flat file format. Some flat files have implied hierarchical relationships between different line types. For information on preserving these hierarchical relationships when converting the flat file to XML, see Multi-Line Hierarchy.

Connector Configuration

File Details Tab

Setting	Description
Connector Id	The static, unique identifier for the connector.
Connector Type	Displays the connector name and a description of what it does.
Connector Description	An optional field to provide a free-form description of the connector and its role in the flow.
File Type	Position Delimited—the fields in the flat file appear at a specific position in each line. Character Delimited—the fields in the flat file are separated by a specific character defined by the Delimiter field.
Delimiter	If File Type is Character Delimited, specify the character that separates individual fields in the flat file.

Control Field: Position Delimited

Settings related to the Control Field when the connector is set to Position Delimited.

Setting	Description
Multi-line Mode	Whether the flat file format includes multiple line types. See Multiple Line Types for more information.
Start Index	If Multi-line Mode is enabled, this value is the index in the line where the Control Field begins. For example, if the first field in a line is the control field, then the Start Index should be 0.
Control Field Length	(Optional) If Multi-line Mode is enabled, this value defines the number of characters to read from the Start Index to get the value of the Control Field.
Column Headers Present	If Multi-line Mode is disabled, this determines whether the first line of a flat file should be interpreted as column headers. Enabling this setting causes the connector to generate a header row when converting from XML to flat file.

Control Field: Character Delimited

Settings related to the Control Field when the connector is set to Character Delimited.

Setting	Description
Multi-line Mode	Whether the flat file format includes multiple types of lines. See Multiple Line Types for more information.
Field Index	If Multi-line Mode is enabled, this is the index of the Control Field in the line (indices start at 0). For example, if the second field of a line is the control field, then the Field Index should be 1.
Generate Field/Line Type Names	If Multi-line Mode is enabled, this setting provides the option to not specify the names and indexes of the fields and line types in the flat file. When this setting is enabled, the connector auto-generates XML element names for fields and line types that are not explicitly defined in the Line Types section below.
Column Headers Present	If Multi-line Mode is disabled, this determines whether the first line of a flat file should be interpreted as column headers. Enabling this setting causes the connector to generate a header row when converting from XML to flat file.
Generate Field Names	If Multi-line Mode is disabled, this determines whether the connector generates generic field names. Disable this setting if you want to manually specify the field names in the Line Types section.

Line Types

This section lets you define the field names and positions in the flat file format. See Defining the Flat File Format for details on defining the flat file format. If File Type is Position Delimited and Multi-line Mode is enabled, click the Add Line Type button to define multiple line types. Each line type has a Control Field Value, which is used to identify the line type. For example, a header line might have the control field value of HEAD, while an item line has the control field value of ITEM. If File Type is set to Character Delimited, Multi-line Mode is enabled, and Generate Field/Line Type Names is enabled, you do not need to provide names and indexes for all of the fields or line types present in the flat file. In this case, the connector auto-generates XML element names for any unspecified fields or line types. Uncheck Generate Field/Line Type Names to manually specify the field names.

Settings Tab

Configuration

Settings related to the core configuration of the connector.

Setting	Description
Connector Id	The static, unique identifier for the connector.
Connector Type	Displays the connector name and a description of what it does.
Connector Description	An optional field to provide a free-form description of the connector and its role in the flow.
Padding Character	When creating a flat file and the field value does not fill the entire field length, this character is used to fill the rest of the field.
Invalid XML Name Prefix	Some field names are not valid names for XML elements (for example, fields that begin with a number like ‘123ABC’), so you must apply a prefix to generate XML from the flat file. When translating from XML to flat file, the connector looks for this prefix and removes it.
Line Separator	Specifies the control character that the connector uses for line endings when writing files. Options are LF (default) and CRLF.
Nest Line Types	This setting is only relevant when converting flat files to XML, and when there are multiple line types in the flat file. If Multi-line Mode is enabled, enabling this setting instructs the connector to add hierarchy to the resulting XML based on the control fields of the flat file lines. See Multi-Line Hierarchy for details on this automatic hierarchy.
Pad on EOL	By default, the connector throws an error if it encounters an unexpected end-of-line. When enabled, this setting tells the connector to pad out the remainder of the line instead of throwing an error.
Force Cell Delimiter	If File Type is set to Character Delimited, enabling this setting instructs the connector to wrap each cell value in cell delimiters (`"`). Disabling this setting instructs the connector to only wrap the cell value in cell delimiters if the specified character delimiter is present in the cell value.
Local File Scheme	A scheme for assigning filenames to messages that are output by the connector. You can use macros in your filenames dynamically to include information such as identifiers and timestamps. For more information, see Macros.

Advanced Tab

Message

Logging

Other Settings

Setting	Description
Processing Delay	The amount of time (in seconds) by which the processing of files placed in the Transactions tab is delayed. This is a legacy setting. Best practice is to use a File connector to manage local file systems instead of this setting.

Miscellaneous

Automation Tab

Setting	Description
Send	Whether files arriving at the connector are automatically processed.

Performance

Alerts Tab

SLAs Tab

Defining the Flat File Format

The first step in configuring a Flat File connector is defining the format of the flat file. This section describes formats that have a single line type; in other words, each line in the flat file has the same set of fields. For flat files with multiple line types, see Multiple Line Types.

Character Delimited Single-line Format

For Character Delimited flat files, defining the format is simple: use the Delimiter property to specify the character that separates different fields in the flat file. The Column headers present field indicates whether the first line of the flat file is a header line; in other words, it contains the names of fields rather than actual data. If these column headers are present, the connector uses the header names as the names of XML elements in the resulting translated XML. Similarly, the connector uses the XML element names to generate a header row when translating from XML to flat file. If column headers are not present, the connector supports manually specifying the names of each field by adding the fields in the Line Types portion of the Settings tab. These field names are applied in index order, meaning that the first entry in Line Types is the name of the first field in the flat file line, and so on. You can also auto-generate generic field names by enabling Use auto generated field names.

Position Delimited Single-line Format

For Position Delimited flat files, defining the format requires specifying the position of each field in the format. The Line Types portion of the Settings tab provides an interface for adding an arbitrary number of fields that are present in each line of the flat file. Each field must be identified by a name and the position in the file it appears. The Column headers present field indicates whether the first line of the flat file is a header line; in other words, it contains the names of fields rather than actual data. The field names must still be configured in the Line Types section; this setting simply helps ensure that a header row is not interpreted as real data.

Non-standard XML Control Fields

Flat file data can include lines that contain a control field that is fully numeric or begins with a number. While this is normal in flat file data, it poses a challenge when converting that flat file data into XML, because XML elements cannot start with a number. They must begin with a letter or an underscore. To accommodate this in the Flat File Connector, if a control field starts with a number, automatically prepends two underscores (__) to that value in the output XML. In addition, a lineType attribute is added to that element and its value corresponds to the original control field value. For example, the following flat file data includes two line types with control fields of 000 and 111:

12345     01222025 NC Yes
02468     01242025 MD Yes
82390     01202025 FL No
67524     01132025 CO No

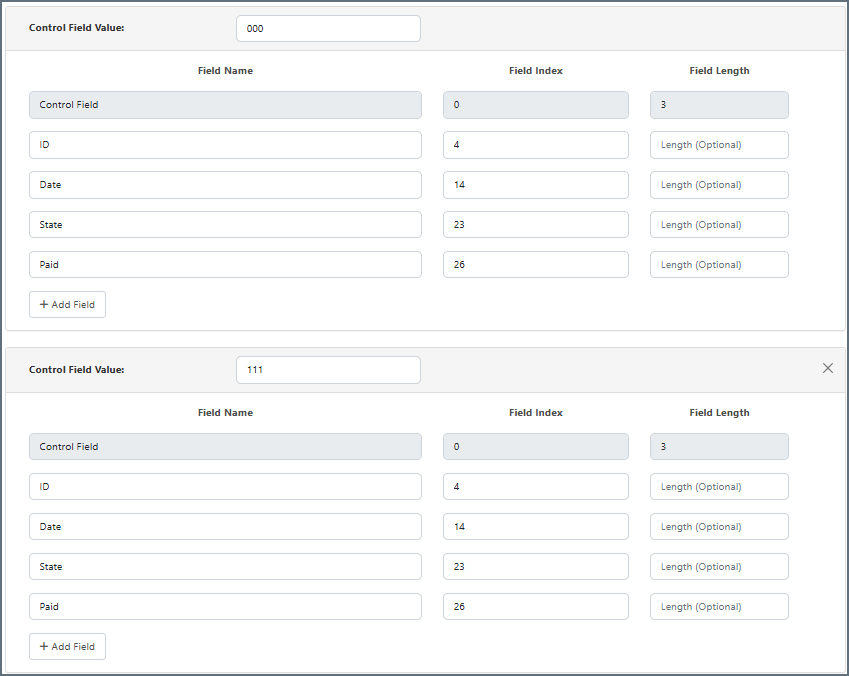

The flat file configuration for this data would look something like this:

When this flat file data is run through the connector using this configuration, the output looks like the following:

<Items>
	<__000 lineType="000">
		<ID>12345</ID>
		<Date>01222025</Date>
		<State>NC</State>
		<Paid>Yes</Paid>
	</__000>
	<__000 lineType="000">
		<ID>02468</ID>
		<Date>01242025</Date>
		<State>MD</State>
		<Paid>Yes</Paid>
	</__000>
	<__111 lineType="111">
		<ID>82390</ID>
		<Date>01202025</Date>
		<State>FL</State>
		<Paid>No</Paid>
	</__111>
	<__111 lineType="111">
		<ID>67524</ID>
		<Date>01132025</Date>
		<State>CO</State>
		<Paid>No</Paid>
	</__111>
</Items>

Notice that each line type has been prefixed with two underscores, and there is a lineType attribute for the XML elements that correspond to the original control field value. This allows the flat file data and XML to be fully bi-directional, which means that when output XML is passed as input to the flat file connector, the output is flat file data containing the correct line type definitions without any underscores. It also means that if you are going from XML to flat file and you need a control field for a line type beginning with a number (or is all numbers), you need to implement the lineType XML attribute on the appropriate XML elements in your document mapping, prior the document arrives at the Flat File connector.

Multiple Line Types

If your flat file format contains multiple types of lines, enable the Multi-line Mode property in the Control Field portion of the Settings tab. The field in the flat file that identifies the line type is known as the control field.

Character Delimited Multi-line Format

When the File Type is Character Delimited, the Field Index setting determines where the control field appears in each line of the flat file. This index starts at 0, meaning that if the control field is the 5th value in the line, the Field Index should be 4. For each possible value that might appear in the control field define a new line type by clicking the Add Line Type button in the Line Types portion of the Settings tab. Set the value that identifies the line type in the Control Field Value for that line. Once each possible line type has been added and identified using a specific Control Field Value, the fields that appear in each line type should be specified in index order. If Generate Field/Line Type Names is enabled, you do not need to provide names and indexes for all of the fields or line types present in the flat file (only the Control Field is required). In this situation, the connector auto-generates XML element names for any unspecified fields or line types.

Position Delimited Multi-line Format

When the File Type is Position Delimited, the Start Index setting determines the position where the control field begins in each line of the flat file. This index starts at 0, meaning that if the control field begins at the 15th character in the line, the Field Index should be 14. For each possible value that might appear in the control field, define a new line type by clicking the Add Line Type button. Set the value that identifies the line type in the Control Field Value for that line. Once each possible line type has been added and identified using a specific Control Field Value, the fields that appear in each line type should be specified along with the position in the line where they begin.

Multi-line Example

For example, say that a flat file contains two types of lines, a shipment line type and a package line type. The shipment line contains information on the date, time, and address of shipment, and the package line type contains information on the items being shipped. The first field in each line is SHIP or PCKG to indicate what type of line it is. To handle this case, enable Multi-line mode, and set the Field Index or Start Index to 0 to indicate that the control field is the first field in the line. Then, configure two line types in the Line Types section: one with a Control Field Value of SHIP, which contains each field in a shipment line (for example, ShipDate, DeliveryDate, and ShipToAddress), and one with a Control Field Value of PCGK, which contains each field in a package line (such as ItemName and ItemWeight).

XML Format

Once a flat file is converted to XML, the result has the following XML structure:

One Items_ element at the root of the document
Each line in the flat file has an element named the same as the Control Field Value for that line (or row if no Control Field Value is defined)
Each field in the row is a child element of the Control Field Value element

For example, if a flat file has SHIP and PCKG lines, then the XML output would look similar to this:

<Items>
  <SHIP>
    <ShipmentId>12B992</ShipmentId>
    <Date>20230228</Date>
    <ShipTo>14 Wallaby Way</ShipTo>
  </SHIP>
  <PCKG>
    <ShipmentId>12B992</ShipmentId>
    <ItemName>Goggles</ItemName>
    <ItemWeight>3.98</ItemWeight>
  </PCKG>
  <PCKG>
    <ShipmentId>12B992</ShipmentId>
    <ItemName>Fins</ItemName>
    <ItemWeight>1.07</ItemWeight>
  </PCKG>
</Items>

To convert an XML file into a flat file, the XML input must match the structure above (this includes the restriction that the field names must match the defined fields in the connector configuration). When converting XML into a flat file, the connector creates a new line in the resulting flat file for each row element in the input XML. For each child of the row element, the connector matches the child to a field name in the connector configuration, and places the value for that element at the appropriate field index.

Multi-Line Hierarchy

Flat files with multiple line types often have an implied hierarchical relationship between the line types. For example, one line might contain data for a Purchase Order (such as customer name and order date), while the following lines represent each line item in that order (for example item name and item quantity). The line items belong to the order, creating a hierarchical relationship. These relationships are sometimes referred to as master-detail relationships, which in our example means that the first line type (Purchase Order) is the master, and the following lines (line items) are details about that master line. In XML, this is often represented as a parent-child relationship. The Flat File connector can preserve these hierarchical relationships when translating flat files to XML. If you enable the Nest Line Types setting on the Advanced tab, the connector automatically indents the detail line types so that they are children of the master line types. The following is a simple example of translating a hierarchical flat file with Nest Line Types enabled. The section after the example explains the logic the connector uses to determine the hierarchical relationships.

Multi-Line Hierarchy Example

Take as example input the following flat file:

M,CustomerA,05022020,true
D,itemA,4,2.09
D,itemB,9,15.23
M,CustomerB,05032020,false
D,itemC,1,5.99
D,itemE,1,3.99

There are two line types in this flat file, M and D:

M, or master, contains information for an order: customer name, order date, and a high-value customer flag.
D, or detail, contains line item information for the preceding order: item name, item quantity, and item price.

Since the D line type belongs to the M line type in a hierarchical relationship, you might want to preserve this hierarchy when translating the flat file to XML. To see what this looks like, take the following example output when the Nest Line Types setting is enabled and the flat file above is translated to XML:

<Items>
  <M>
    <CustomerName>CustomerA</CustomerName>
    <OrderDate>05022020</OrderDate>
    <HighValueCustomer>true</HighValueCustomer>
    <D>
      <ItemName>itemA</ItemName>
      <ItemQuantity>4</ItemQuantity>
      <ItemPrice>2.09</ItemPrice>
    </D>
    <D>
      <ItemName>itemB</ItemName>
      <ItemQuantity>9</ItemQuantity>
      <ItemPrice>15.23</ItemPrice>
    </D>
  </M>
  <M>
    <CustomerName>CustomerB</CustomerName>
    <OrderDate>05032020</OrderDate>
    <HighValueCustomer>false</HighValueCustomer>
    <D>
      <ItemName>itemC</ItemName>
      <ItemQuantity>1</ItemQuantity>
      <ItemPrice>5.99</ItemPrice>
    </D>
    <D>
      <ItemName>itemE</ItemName>
      <ItemQuantity>1</ItemQuantity>
      <ItemPrice>3.99</ItemPrice>
    </D>
  </M>
</Items>

Notice that the D records are children of the M records, which accurately reflects the hierarchy present in the source data.

Multi-Line Hierarchy Logic

The Flat File connector uses the order of lines in the source flat file to determine the hierarchy between line types. When Nest Line Types is enabled, the connector uses the following logic:

The first line type the connector encounters is always treated as the top level of hierarchy (it is not indented in the resulting XML)
After the first line type, when the connector encounters a new line type it assumes this line type is one level of hierarchy below the previous line type (it belongs to the previous line and is therefore indented in the resulting XML)
When the connector encounters a line type it has encountered before, it returns to that line type’s level of hierarchy, closing all XML elements at hierarchy levels equal-to or below this level.

This means that the source flat file must have lines in order according to the desired hierarchy.
