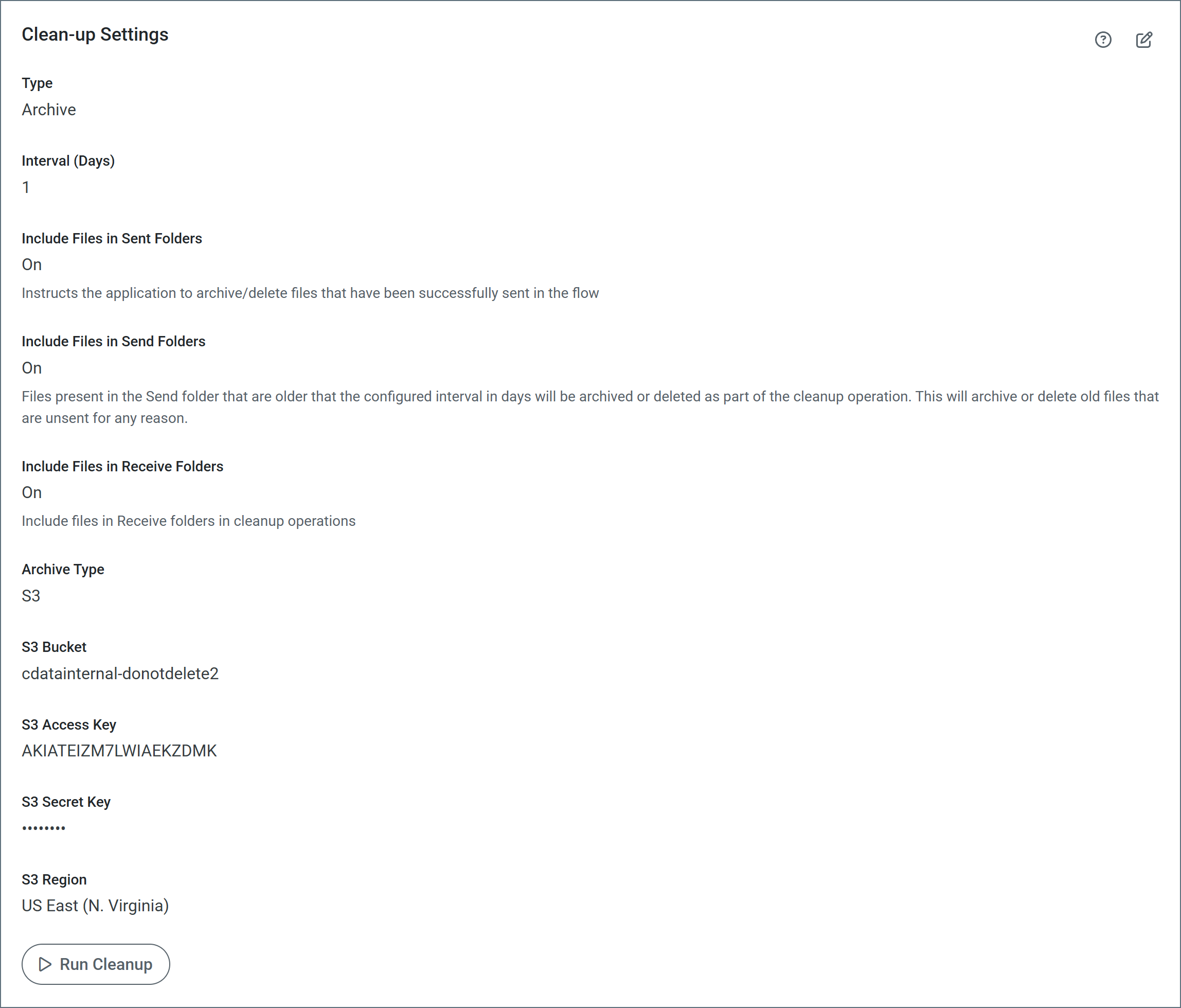

Cleanup Settings

Setting	Description
Type	Specify whether to archive or delete logs during cleanup.
Interval	Specify (in days) the cleanup threshold. For example, when set to 5 days, only logs and database entries over 5 days old are cleaned up.
Include files in Sent folders	Archive or delete files in the connector’s Logs/Sent folder that have been successfully sent in the flow. Sent files can consume large amounts of disk space. This option frees up disk space by cleaning up sent files when the cleanup runs.
Include files in Send folders	Archive or delete files that accumulate in the connector Send folders.
Include files in Receive Folders	Include files in Receive folders in cleanup operations.
Archive Type	Specify whether the archive should be sent to your local file disk or to an S3 bucket. Only applicable when Type is set to Archive.
Local Archive Folder	Applicable when the Archive Type is Local Disk. By default, the archive folder is a folder called `archive` in your application directory (`archive` is the only relative path supported). To use a different location, enter an absolute path. If you leave the field empty, each connector folder contains its own Archive folder.
S3 Options	If the Archive Type is S3, set the following S3-specific options: S3 Bucket, S3 Access Key, S3 Secret Key, and S3 Region.

Setting

Description

Type

Specify whether to archive or delete logs during cleanup.

Interval

Specify (in days) the cleanup threshold. For example, when set to 5 days, only logs and database entries over 5 days old are cleaned up.

Include files in Sent folders

Archive or delete files in the connector’s Logs/Sent folder that have been successfully sent in the flow. Sent files can consume large amounts of disk space. This option frees up disk space by cleaning up sent files when the cleanup runs.

Include files in Send folders

Archive or delete files that accumulate in the connector Send folders.

Include files in Receive Folders

Include files in Receive folders in cleanup operations.

Archive Type

Specify whether the archive should be sent to your local file disk or to an S3 bucket. Only applicable when Type is set to Archive.

Local Archive Folder

Applicable when the Archive Type is Local Disk. By default, the archive folder is a folder called archive in your application directory (archive is the only relative path supported). To use a different location, enter an absolute path. If you leave the field empty, each connector folder contains its own Archive folder.

S3 Options

If the Archive Type is S3, set the following S3-specific options: S3 Bucket, S3 Access Key, S3 Secret Key, and S3 Region.

Include files in Send folders

When a large number of files accumulate in connector Send folders, the performance of the application can suffer. These files can accumulate for various reasons, including:

A connector exceeds the maximum number of retries for a message and no error path is configured for that connector.

The Send folder for a connector was overridden in a legacy version of Arc and pointed at a shared folder that the application could not clean up. The ability to change the Send folder and apply Send Filters is deprecated in current versions of Arc. You should use error paths instead.

If you enable this feature, ensure that your connectors process files in the Send folder on a shorter interval than the cleanup interval you specify on this page. Otherwise, the application might clean up the files in the Send folder before the connectors can process them.
